Underwater Security Cameras
Security
CCTV
Underwater 20 meter depth
◎ C7 Series
◎ 2 Mega Pixels 1080P or 5 Mega Pixels 2592(H) x 1944(V)
◎ Color Day & Night
◎ High Sensitivity ; High Performance
◎ Enhanced OSD Function to adjust the image (IR Remote
control)
◎ Use Anode processed Surface
◎ Fixed Board Lens mm (option)
◎ With 7 white Light LEDs, Switch to ON/OFF through IR
Remote Controller
◎ Power Source DC12V
◎ Cable Length 30 Meter
◎ 3DNR
◎ Digital WDR
◎ Under Water dwon to 20 Meters
◎ IP-68 rated
(Details...)
Underwater 20 meter depth
◎ O6 Series
◎ 1/2.8 2MP COMS Sensor 1080P or 5 Mega Pixels 2592(H) x
1944(V)
◎ High Sensitivity ; High Performance
◎ Enhanced OSD Function to adjust the image
◎ Motorized Lens 2.8-8 mm or
Fixed Lens 6 mm
◎ Use Anode processed surface and SR-PVC cable anti-seawater
◎ Under Water down to 20 Meters
◎ 12 White LED Illumination Range: Up to 5 Meters with color image
◎ Turn ON/OFF LED by IR remote controller
◎ IP 68 water proof
◎ Power Source DC 12V
(Details...)
Underwater 30 meter depth
◎ O3 Series
◎ 1/2.8” 2.0 Mega pixels CMOS sensor 1080P or 5 Mega Pixels 2592(H)
x 1944(V)
◎ Ultra Low Light、Color reproduced at Night
◎ Built in 18 White Light LED or 21 IR LED
◎ Turn ON/OFF LED by IR remote controller
◎ Motorized Lens 2.8-12 mm or Fixed Lens 6 mm
◎ Digital Wide Dynamic Range; Motion Detection, Privacy Mask, Defog
◎ Low operation temperature and power consumption.
◎ Enhanced 2D / 3D Noise Reduction
◎ Use Anode processed surface and SR-PVC cable anti-seawater
◎ UTC control
◎ Motorized Zoom & Auto focus Lens adjustable by UTC/OSD
◎ IP 68 water proof
◎ 12V DC
(Details...)

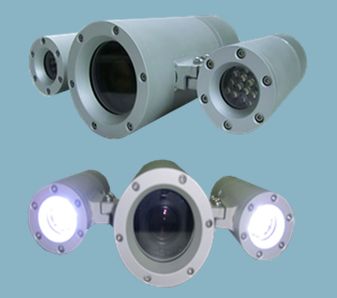

Underwater 70 meter depth
◎ OA Series
◎ SONY 2MP COMS Sensor
◎ High Sensitivity ; High Performance (Star Lighting Class)
◎ Motorized Zoom Lens 5-50mm or 6-22mm
◎ Enhanced OSD Function to adjust the image
◎ Advance design with decompression compartment for suitable
operation under water
◎ Use Anode processed Surface
◎ Under Water down to 70 Meters
◎ IP-68 rated
◎ 48 White LED Illumination Range: Up to 15 Meters
◎ UTC controller for switching LED lamp to ON/OFF , OSD and Zoom /
Focus
◎ 12V DC
(Details...)
General Specifications
Effective Pixels
1984 (H) × 1105 (V) approx. 2.19 Mega pixels
2688 (H) × 1944 (V) approx. 5 Mega pixels
Resolution
1920 * 1080P @ 30fps/25fps
2592 * 1944P @ 30fps/25fps
Lens
3 Mega Pixels
4 Mega Pixels
Video Output
BNC Connector Composite video 75 ohm
Gamma Correction
0.45.......1.0 ; User Switched through UTC / OSD
Minimum Illumination
0.1 Lux ; IR Activated 0.001 Lux.
S/N Ratio
More than 62dB (AGC Off)
Shutter Speed
Auto / Variable Switched by UTC / OSD
Backlight Compensation
Auto
Gain Control
Setting through OSD menu
Image Correction
Image Reverse (Mirror) ; Sense up ; Slow Shutter
Power Input
12 V DC / 24 V AC / Universal 100 V ~ 240 V AC
Ambient
-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH

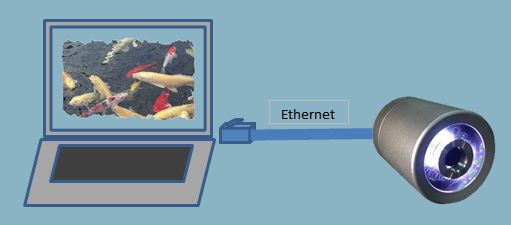

IP Networking Functions
IP Video
Video Compression
H.264 / M-JPEG
Bit Rate
128k~8M
Bit Rate Type
CBR / VBR / CVBR
Resolution
Main Stream : 1920 x 1080 / 1280 x 720
Sub Stream : 640 x 360 / 320 x 180
Frame Rate
Main Stream : 1920 x 1080 / 1280 x 720 @ 30 fps
Sub Stream : 640 x 360 / 320 x 180 @ 30 fps
Streaming
H.264 Dual Stream (Main and Sub)
M-JPEG Dual Stream (Main and Sub)
Networking
Ethernet
10/100 Base-T RJ45
Protocol
UDP, TCP, RTP, RTCP, RTSP, HTTP, HTTPS, FTP, DHCP, IGMP, ICMP, ARP, SMTP, Bonjour, SNMP, UPnP, QoS/DSCP, NTP, DNS, DDNS, PPPoE
ONVIF
ONVIF 2.4 Profile S
Application
Search
UPnP / Search Tool
Security
3-level user access with password protection
Firmware Update
Web UI
Power & Environment
Power Supply
DC 12V±10%
PoE (Optional)
IEEE 802.3af Standard
