IP License Plate Read Cameras



   IP Video
  Video Compression: H.264 / M-JPEG
  Bit Rate: 128k~8M
  Bit Rate Type: CBR / VBR / CVBR
  Resolution:   Main Stream : 1920 x 1080 / 1280 x 720 ; Sub Stream : 640 x 360 / 320 x 180
  Frame Rate: Main Stream : 1920 x 1080 / 1280 x 720 @ 30fps Sub Stream : 640 x 360 / 320 x 180 @ 30fps

  Streaming :  H.264 Dual Stream (Main and Sub) ; M-JPEG Dual Stream (Main and Sub)

  Networking
  Ethernet:    10/100 Base-T RJ45
  Protocol:     UDP, TCP, RTP, RTCP, RTSP, HTTP, HTTPS, FTP, DHCP, IGMP, ICMP, ARP, SMTP, Bonjour,
                     SNMP, UPnP, QoS/DSCP, NTP, DNS, DDNS, PPPoE
  Filter: Accept & Reject by IP address
  ONVIF Profile S
  Maximum Connection: 10

   Application
   SD Card Slot Support 4G~128G
   Search UPnP / Search Tool (IP Finder)
   Security 3-level user access with password protection
   Motion Detection 3 separate zones
   Firmware Update Web UI

   Power & Environment
   Power Supply DC 12V±10% (Built in 12V DC 60W PoE)
   PoE IEEE 802.3At Standard

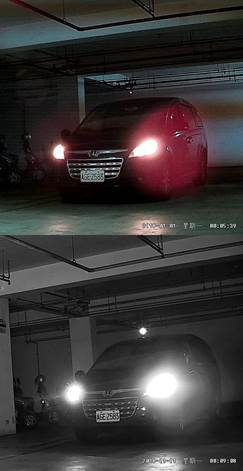

          Real Night Vision ANPR/ LPR

                               Vehicle speed more than 70mph / 110kph      (Mouse over the image to zoom in number plate)

Mouseover





◆ Sony 1/2" (IMX385) or 1/2.9” 2 Mega pixels, 1920(H)*1080(V)
★ Sony 1/2.9” 5 Mega Pixels , 2592(H)*1944(V)

◎ Ultra Low Light、Color reproduced at Night
◎ IR lighting variable according to installation environment
◎ Digital Wide Dynamic Range; Motion Detection,Privacy Mask, Defog
◎ Enhanced 2D / 3D Noise Reduction
◎ Variable Electronic Shutter Speed
◎ UTC control OSD / Motorized Zoom
◎ External Lens adjustment and OSD setup
◎ Weather proof IP-66 Rated
◎ Available Lens: Varifocal:5-50mm/5100mm or Motorized Zoom: 10x / 16x / 20x

Highway / Expressway / Avenue Traffic Control

IP LPR/ANPR

◎ J3 Series
◎ Built in 24 Super Output IR LEDs
◎ IR range up to 50 meter @1/480s
◎ 2 separated IR units on variable field of view
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 220 (H) * 250 (W) * 380(D) mm

(Details...)

IP LPR/ANPR

◎ J2 Series
◎ Built in 24 Super Output IR LEDs
◎ IR range up to 50 meter @1/480s
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 230 (H) * 220 (W) * 350 (D) mm

   (Details...)

IP LPR/ANPR

◎ J1 Series
◎ Built in 18 Super Output IR LEDs
◎ IR range up to 40 meter @1/480s
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 148 (H) * 144 (W) * 380(D) mm

(Details...)

IP LPR/ANPR

◎ ID Series
◎ Built in 25 high output Laser IR LEDs
◎ IR range up to 45 meter @1/480s
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 155 (H) * 150 (W) * 440 (D) mm

(Details...)

IP LPR/ANPR

◎ I4 Series
◎ Built in 12 Super Output IR LEDs
◎ IR range up to 30 meter @1/480s
◎ Cable Management
◎ Lens adjustment and OSD setup through trap door
Dimension: 160 (H) * 220 (W) * 380 (D) mm

   (Details...)

IP LPR/ANPR

◎ I6 Series
◎ Built in 15 high output IR LEDs
◎ IR range up to 30 meter @1/480s
◎ Lens adjustment and OSD setup through trap door
Dimension: 122 (H) * 150 (W) * 380 (D) mm

(Details...)

IP LPR/ANPR

◎ I9 Series
◎ Built in 15 high output IR LEDs ;
◎ IR range up to 30 meter @1/480s
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 110 (H) *198 (W) * 310 (D) mm

(Details...)



Street/Alley Monitoring & Parking Lot Management


  Click on " II " (Pause) to read the number plate


   IP LPR/ANPR

◎ K3 Series
◎ Built in 12 high output Laser IR LEDs
◎ IR range 35 meter @1/240s
◎ Lens adjustment and OSD setup through front hinged lid
◎ Varifocal 5-50 mm/ 5-100 mm or Motorized 10x zoom
Dimension: 100mm(H) x 124mm(W)×300mm(D)

(Details...)



   IP LPR/ANPR

◎ I8 Series
◎ Built in 10 Super High Output LEDs
◎ IR range 30 Meter @1/240s
◎ Lens adjustment and OSD setup through trap door
◎ Varifocal 5-50 mm or Motorized 6-22 mm / 10x zoom
Dimension: 125mm(H) x 115mm(W)×245mm(D)

   (Details...)


   IP LPR/ANPR

◎ IH Series
◎ Built in 10 Super High Output LEDs
◎ IR range 30 Meter @1/240s
◎ Lens adjustment and OSD setup through side door
◎ Varifocal 5-50 mm or Motorized 10x zoom
Dimension: 120mm(H) x 150mm(W) × 300mm(D)

   (Details...)



   IP LPR/ANPR

◎ K5 Series
◎ Built in 9 high output Laser IR LEDs
◎ IR range 25 meter @1/240s
◎ Lens adjustment and OSD setup through front hinged lid
◎ Varifocal 5-50 mm or Motorized 6-22 mm
Dimension: 95mm(H) x 100mm(W)×200mm(D)

   (Details...)



   IP LPR/ANPR

◎ K9 Series
◎ Built in 6 high output IR LEDs
◎ IR range 8 meter @1/240s
◎ Lens adjustment and OSD setup through front hinged lid
◎ Motorized 2.8-12 mm / 3.5-9 mm
Dimension: 75mm(H) x 85mm(W)×110mm(D)



General Specifications

Effective Pixels

1984 (H) × 1105 (V) approx. 2.19 Mega pixels

2688 (H) × 1944 (V) approx. 5 Mega pixels

Resolution

1920 * 1080P @ 30fps/25fps

2592 * 1944P @ 30fps/25fps

Lens

3 Mega Pixels

4 Mega Pixels

Video Output

BNC Connector Composite video 75 ohm

Gamma Correction

0.45.......1.0 ; User Switched through UTC / OSD

Minimum Illumination

0.1 Lux ; IR Activated 0.001 Lux.

S/N Ratio

More than 62dB (AGC Off)

Shutter Speed

Auto / Variable Switched by UTC / OSD

Backlight Compensation

Auto

Gain Control

Setting through OSD menu

Image Correction

Image Reverse (Mirror) ; Sense up ; Slow Shutter

Power Input

12 V DC / 24 V AC / Universal 100 V ~ 240 V AC

Ambient

-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
