License Plate Read Cameras

Analog License Plate Read Cameras

Highway / Street Vehicle License / Number Plate Read Camera

Need a separated software to recognize

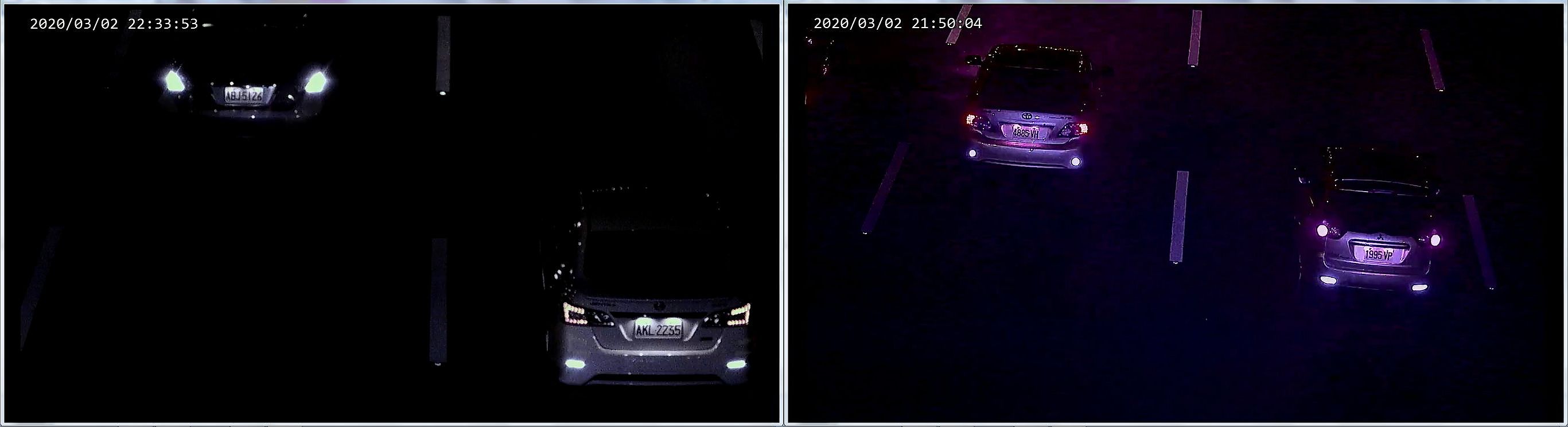

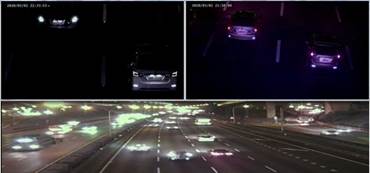

Mouse over a number plate to magnify Vehicle speed more than 70mph / 110kph

   ◆ Sony 1/2" (IMX385) or 1/2.9” 2 Mega pixels, 1920(H)x1080(V)
   ★ Sony 1/2.9” 5 Mega Pixels, 2592(H)x1944(V)

   ◎ Ultra Low Light、Color reproduced at Night
   ◎ IR lighting variable according to installation environment
   ◎ Digital Wide Dynamic Range; Motion Detection,
   Privacy Mask, Defog
   ◎ Enhanced 2D / 3D Noise Reduction
   ◎ Variable Electronic Shutter Speed
   ◎ UTC control OSD & Motorized Zoom
   ◎ External Lens adjustment and OSD setup
   ◎ Weather proof IP-66 Rated
   ◎ Available Lens:
— Varifocal 5-50mm / 5-100mm
— Motorized Zoom 10x / 16x / 20x

Suited for Highway or Street

Analog LPR/ANPR

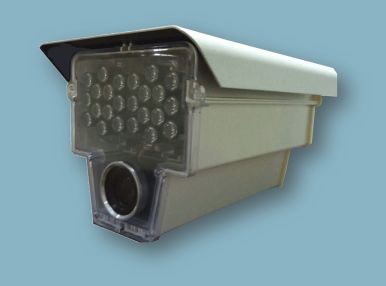

◎ AM-J3 Series
◎ Built in 24 Super Output IR LEDs
◎ IR range up to 50 meter @1/480s
◎ 2 separated IR units on variable field of view
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 220 (H) * 250 (W) * 380 (D) mm
(Details...)

Analog LPR/ANPR

    ◎ AM-J2 Series
    ◎ Built in 24 Super Output IR LEDs
    ◎ IR range up to 50 meter @1/480s
    ◎ Lens adjustment and OSD setup through hinged lid
    Dimension: 230 (H) * 220 (W) * 350 (D) mm
      (Details...)

Analog LPR/ANPR

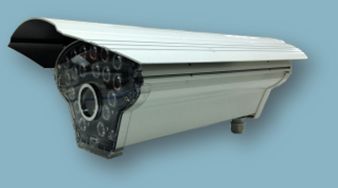

◎ AM-J1 Series
◎ Built in 18 Super Output IR LEDs
◎ IR range up to 40 meter @1/480s
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 148 (H) * 144 (W) * 380 (D) mm
(Details...)

Analog LPR/ANPR

    ◎ AM-ID Series
    ◎ Built in 25 high output IR LEDs
    ◎ IR range up to 45 meter @1/480s
    ◎ Lens adjustment and OSD setup through hinged lid
    Dimension: 155 (H) * 150 (W) * 440 (D) mm
       (Details...)

Analog LPR/ANPR

◎ AM-I4 Series
◎ Built in 12 Super Output IR LEDs
◎ IR range up to 30 meter @1/480s
◎ Cable Management
◎ Lens adjustment and OSD setup through trap door
Dimension: 160 (H) * 220 (W) * 380 (D) mm
(Details...)

Analog LPR/ANPR

    ◎ AM-I6 Series
    ◎ Built in 15 high output IR LEDs
    ◎ IR range up to 30 meter @1/480s
    ◎ Lens adjustment and OSD setup through trap door
    Dimension: 122 (H) * 150 (W) * 380 (D) mm
       (Details...)

Analog LPR/ANPR

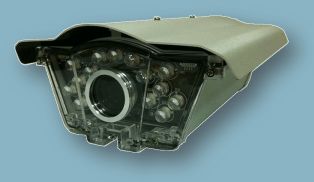

◎ AM-I9 Series
◎ Built in 15 high output Laser IR LEDs ;
◎ IR range up to 30 meter @1/480s
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 110 (H) *198 (W) * 310 (D) mm
(Details...)

General Specifications

Effective Pixels

1984 (H) × 1105 (V) approx. 2.19 Mega pixels

2688 (H) × 1944 (V) approx. 5 Mega pixels

Resolution

1920 * 1080P @ 30fps/25fps

2592 * 1944P @ 30fps/25fps

Lens

3 Mega Pixels

4 Mega Pixels

Video Output

BNC Connector Composite video 75 ohm

Gamma Correction

0.45.......1.0 ; User Switched through UTC / OSD

Minimum Illumination

0.1 Lux ; IR Activated 0.001 Lux.

S/N Ratio

More than 62dB (AGC Off)

Shutter Speed

1/240s or 1/480s set at factory

Backlight Compensation

Auto

Gain Control

Setting through OSD menu

Image Correction

Image Reverse (Mirror) ; Sense up ; Slow Shutter

Power Input

12 V DC / 24 V AC / Universal 100 V ~ 240 V AC

Ambient

-10 ～ 50℃ (14~122F) /30 ～ 90 ﹪RH
