Products
IP License Plate Read Camera Speed Dome PTZ Camera Underwater Security Camera PIR Security Camera IR Floodlight  Other


IR Security Cameras

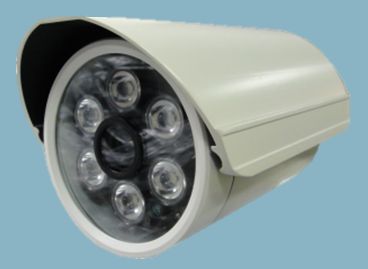

  • K9 Series
  • Built in 6 High Output IR
  • IR range 50 meter
  • Varifocal 2.8-12mm / 6-22mm
  •        (Details...)


  • K7 Series
  • Built in 6 IR
  • IR range 30 meter
  • Board Lens 3.6mm
  •        (Details...)


  • K1 Series
  • Built in 6 IR
  • IR range 25 meter
  • Board Lens 3.6mm
  •        (Details...)


  • QD Series
  • Built in 32 IR
  • IR range 25 meter
  • Varifocal 2.8-12mm / Motorized : 2.8-12mm
  •        (Details...)

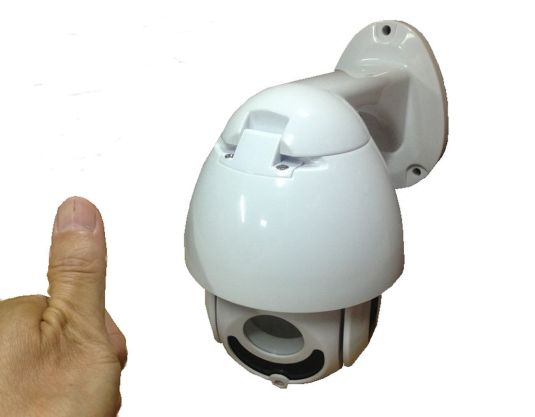

  • Z1 Series Wall Mount
  • Built in 5 IR
  • IR range 30 meter
  • Pan: 320 degree (H) / Tilt: 95 degree (V)
  • Board Lens 3.6 mm
  • Anti-UV plastic body
  • Light weight
  •        (Details...)

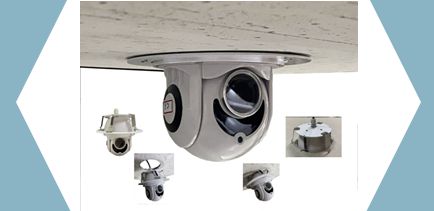

  • Z1 Series Ceiling Mount
  • Built in 5 IR
  • IR range 30 meter
  • Pan: 320 degree (H); Tilt: 95 degree (V)
  • Motorized Zoom : 2.8-12 mm
  • Anti-UV plastic body
  • Light weight

General Specifications

Effective Pixels

1984 (H) × 1105 (V) approx. 2.19 Mega pixels

2688 (H) × 1944 (V) approx. 5 Mega pixels

Resolution

1920 * 1080P @ 30fps/25fps

2592 * 1944P @ 30fps/25fps

Lens

3 Mega Pixels

4 Mega Pixels

Video Output

BNC Connector Composite video 75 ohm

Gamma Correction

0.45.......1.0 ; User Switched through UTC / OSD

Minimum Illumination

0.1 Lux ; IR Activated 0.001 Lux.

S/N Ratio

More than 62dB (AGC Off)

Shutter Speed

Auto / Variable Switched by UTC / OSD

Backlight Compensation

Auto

Gain Control

Setting through OSD menu

Image Correction

Image Reverse (Mirror) ; Sense up ; Slow Shutter

Power Input

12 V DC / 24 V AC / Universal 100 V ~ 240 V AC

Ambient

-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
