Long Range Security Cameras
◆
Sony 1/2.9” 2 Mega pixels, 1920(H)x1080(V)
★ Sony
1/2.9” 5 Mega Pixels, 2592(H)x1944(V)
◎ Ultra Low Light、Color
reproduced at Night
◎ Digital Wide Dynamic Range; Motion
Detection,
Privacy Mask, Defog
◎ Enhanced
2D / 3D Noise Reduction
◎ Variable
Electronic Shutter Speed
◎ UTC control OSD & Motorized Zoom
◎ External Lens adjustment and OSD setup
◎ Weather proof IP-66 Rated
K3 Series
◎ Built in 12 Super high output IR LEDs
◎ IR range 100 meter
◎ Lens adjustment and OSD setup through trap door
◎ Varifocal 5-50 mm/ 5-100 mm or Motorized 10x zoom
Dimension: 100mm(H) x 124mm(W)×300mm(D)
(Details...)

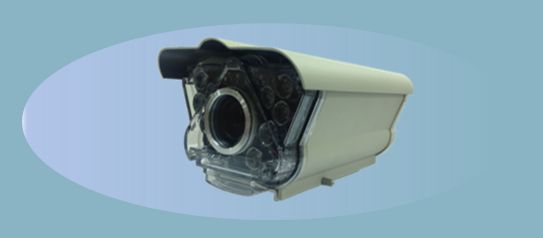

I8 Series
◎ Built in 10 Super High Output LEDs
◎ IR range 100 Meter
◎ Lens adjustment and OSD setup through
trap door
◎ Varifocal 2.8-12 mm / 5-50 mm or
Motorized 2.8-12 mm
/ 6-22 mm / 10x zoom
Dimension: 125mm(H) x 115mm(W)×245mm(D)
(Details...)
IH Series
◎ Built in 10 Super High Output LEDs
◎ IR range 100 Meter
◎ Lens adjustment and OSD setup through side
door
◎ Varifocal 5-50 mm or Motorized 10x zoom
Dimension: 120mm(H) x 150mm(W) × 300mm(D)
(Details...)

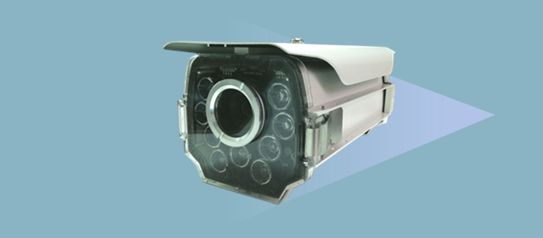

K5 Series
◎ Built in 9 high output IR LEDs
◎ IR range 90 meter
◎ Lens adjustment and OSD setup through
front hinged lid
◎ Varifocal 2.8-12
mm / 5-50 mm or
Motorized
2.8-12 mm / 6-22 mm / 10x zoom
Dimension: 95mm(H) x
100mm(W)×200mm(D)
General Specifications
Effective Pixels
1984 (H) × 1105 (V) approx. 2.19 Mega pixels
2688 (H) × 1944 (V) approx. 5 Mega pixels
Resolution
1920 * 1080P @ 30fps/25fps
2592 * 1944P @ 30fps/25fps
Lens
3 Mega Pixels
4 Mega Pixels
Video Output
BNC Connector Composite video 75 ohm
Gamma Correction
0.45.......1.0 ; User Switched through UTC / OSD
Minimum Illumination
0.1 Lux ; IR Activated 0.001 Lux.
S/N Ratio
More than 62dB (AGC Off)
Shutter Speed
Auto / Variable Switched by UTC / OSD
Backlight Compensation
Auto
Gain Control
Setting through OSD menu
Image Correction
Image Reverse (Mirror) ; Sense up ; Slow Shutter
Power Input
12 V DC / 24 V AC / Universal 100 V ~ 240 V AC
Ambient
-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
