Analog License Plate Read Cameras

Street / Parking Lot      Vehicle License / Number Plate Read Camera

Need a separated software to recognize

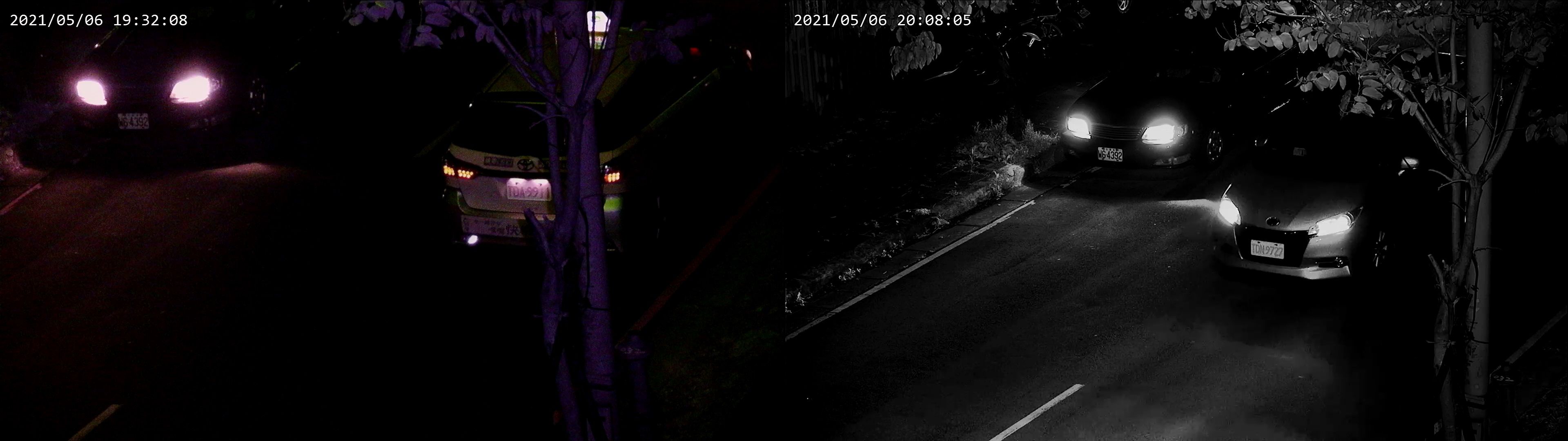

                                                Mouse over the number plate to magnify (Taxi's number plate with red character)

Mouseover


   ◆ Sony 1/2" (IMX385)  or  1/2.9” 2 Mega pixels, 1920(H)x1080(V)
   ★ Sony 1/2.9” 5 Mega Pixels, 2592(H)x1944(V)

   ◎ Ultra Low Light、Color reproduced at Night
   ◎ IR lighting variable according to installation environment
   ◎ Digital Wide Dynamic Range; Motion Detection,
       Privacy Mask, Defog
   ◎ Enhanced 2D / 3D Noise Reduction
   ◎ Variable Electronic Shutter Speed
   ◎ UTC control OSD & Motorized Zoom
   ◎ External Lens adjustment and OSD setup
   ◎ Weather proof IP-66 Rated
   ◎ Available Lens:
  — Varifocal 5-50mm / 5-100mm
  — Motorized Zoom 10x / 16x / 20x

  Click on " II " (Pause) to read the number plate


Suited for Street / Parking Lot


     Analog LPR/ANPR

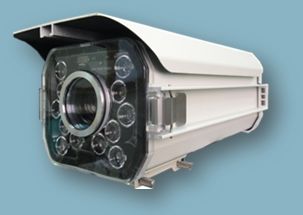

    ◎ K3 Series
    ◎ Built in 12 high output Laser IR LEDs (Projection Angle 20°)
    ◎ IR range 35 meter @1/240s
    ◎ Lens adjustment and OSD setup through trap door
    ◎ Varifocal 5-50 mm/ 5-100 mm or Motorized 10x zoom
    Dimension: 100mm(H) x 124mm(W)×300mm(D)

(Details...)




Analog LPR/ANPR

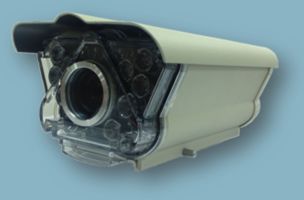

◎ I8 Series
◎ Built in 10 Super High Output LEDs
◎ IR range 30 Meter @1/240s
◎ Lens adjustment and OSD setup through trap door
◎ Varifocal 2.8-12 mm / 5-50 mm or
    Motorized 2.8-12 mm / 6-22 mm / 10x zoom
Dimension: 125mm(H) x 115mm(W)×245mm(D)

(Details...)




     Analog LPR/ANPR

    ◎ IH Series
    ◎ Built in 10 Super High Output LEDs
    ◎ IR range 30 Meter @1/240s
    ◎ Lens adjustment and OSD setup through side door
    ◎ Varifocal 5-50 mm or Motorized 10x zoom
    Dimension: 120mm(H) x 150mm(W) × 300mm(D)

(Details...)




Analog LPR/ANPR
◎ K5 Series
◎ Built in 9 high output Laser IR LEDs (Projection Angle 20°)
◎ IR range 25 meter @1/240s
◎ Lens adjustment and OSD setup through front hinged lid
◎ Varifocal 2.8-12 mm / 5-50 mm or
    Motorized 2.8-12 mm / 6-22 mm
Dimension: 95mm(H) x 100mm(W)×200mm(D)

(Details...)




     Analog LPR/ANPR

    ◎ K9 Series
    ◎ Built in 6 High Output IR
    ◎ IR range
8 meter @1/240s
    ◎ Varifocal 2.812mm / 6-22mm / 5-50mm
    Dimension: 75mm(H) x 85mm(W)×110mm(D)




General Specifications

Effective Pixels

1984 (H) × 1105 (V) approx. 2.19 Mega pixels

2688 (H) × 1944 (V) approx. 5 Mega pixels

Resolution

1920 * 1080P @ 30fps/25fps

2592 * 1944P @ 30fps/25fps

Lens

3 Mega Pixels

4 Mega Pixels

Video Output

BNC Connector Composite video 75 ohm

Gamma Correction

0.45.......1.0 ; User Switched through UTC / OSD

Minimum Illumination

0.1 Lux ; IR Activated 0.001 Lux.

S/N Ratio

More than 62dB (AGC Off)

Shutter Speed

1/240s or 1/480s set at factory

Backlight Compensation

Auto

Gain Control

Setting through OSD menu

Image Correction

Image Reverse (Mirror) ; Sense up ; Slow Shutter

Power Input

12 V DC / 24 V AC / Universal 100 V ~ 240 V AC

Ambient

-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
