PIR Security Cameras
Hybrid LED built-in
◆ Sony 1/2.9” 2 Mega pixels, 1920(H)
x 1080(V) / 30 fps.
★ Sony 1/2.9” 5 Mega Pixels, 2592(H) x 1944(V)
◎ Color image at night when PIR sensor is triggered
by moving object
◎ Adjustable sensitivity and span of PIR sensor.
◎ Built in hybrid IR and LED light
◎ DWDR; Motion Detection, Privacy Mask, Defog
◎ Enhanced 2D / 3D Noise
Reduction
◎ IP-65
◎ K3 series
◎ PIR detect range approx.
12~15 Meters
◎ Built in 10 high output IR
and 3 white LEDs (6000K)
◎ IR range up to 100 meter /
White LED range 20 meter
◎ Lens adjustment and OSD setup
through trap door
◎ 3MP CS F1.4 Fixed 4 mm/6 mm
or Motorized 2.7~13.5 mm/ 6-22 mm ; Varifocal 5-50 mm
Dimension: 100 (H) * 124 (W) *
300 (D) mm
◎ K3 series Dual PIR with LPR function.
◎ PIR detect range approx. 18
Meters
◎ Built in 10 high output IR
and 3 white LEDs (6000K)
◎ 10 meter from parking
entrance read number plate
with high output IR and 2 meter range read color
number plate with white light LED
◎ IR range up to 100 meter /
White LED range 20 meter
◎ Lens adjustment and OSD setup
through trap door
◎ 3MP CS F1.4 Fixed 4 mm/6 mm
or Motorized 2.7~13.5 mm/ 6-22 mm; Varifocal 5-50 mm
Dimension: 110 (H) * 124 (W) *
300 (D) mm

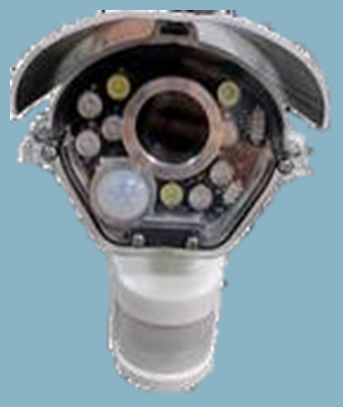

◎ O7 series
◎ PIR detect range up to 9
Meters
◎ Built in 6 high output IR and
3 LEDs (3000K)
◎ IR range up to 30 meter /
White LED range 15 meter
◎ Lens adjustment and OSD setup
through front hinged lid
◎ 3M CS F1.4 Fixed 4 mm/6 mm or
Motorized 2.7~13.5 mm/ 6-22 mm ;
Dimension: 105 (H) * 100 (W) *
200 (D) mm
◎ O7 series Dual PIR
◎ PIR detect range up to 18
Meters
◎ Built in 6 high output IR and
3 LEDs (3000K)
◎ IR range up to 30 meter /
White LED range 15 meter
◎ Lens adjustment and OSD setup
through front hinged lid
◎ 3M CS F1.4 Fixed 4 mm/6 mm or
Motorized 2.7~13.5 mm/ 6-22 mm ;
Dimension: 105 (H) * 100 (W) *
200 (D) mm
General Specifications
Effective Pixels
1984 (H) × 1105 (V) approx. 2.19 Mega pixels
2688 (H) × 1944 (V) approx. 5 Mega pixels
Resolution
1920 * 1080P @ 30fps/25fps
2592 * 1944P @ 30fps/25fps
Lens
3 Mega Pixels
4 Mega Pixels
Video Output
BNC Connector Composite video 75 ohm
Gamma Correction
0.45.......1.0 ; User Switched through UTC / OSD
Minimum Illumination
0.1 Lux ; IR Activated 0.001 Lux.
S/N Ratio
More than 62dB (AGC Off)
Shutter Speed
Auto / Variable Switched by UTC / OSD
Backlight Compensation
Auto
Gain Control
Setting through OSD menu
Image Correction
Image Reverse (Mirror) ; Sense up ; Slow Shutter
Power Input
12 V DC / 24 V AC / Universal 100 V ~ 240 V AC
Ambient
-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
