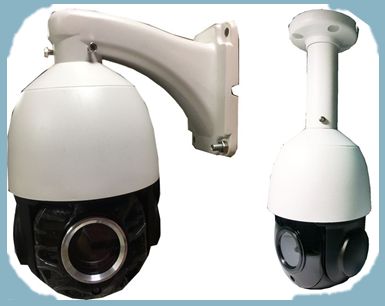

1/3” CCD Long Range IR Camera

X1N335G1DU11



n           Outdoor Housing, Built-in Heater & Blower

n           Built in Ultra High Output Matrix IR LED (OSRAM Germany)

n           IR Range: Up to 180 Meter (45 Meter @1/500 fixed shutter   speed for LPR or ANPR)

n       DNR3 [ Digital Noise Reduction]

By using the DSP chip applied to the DNR technology, the amount of low

illuminance noise has been significantly reduced, and the signal-to-noise ratio (S/N)

as well as horizontal resolution has been improved, resulting in a clear and sharp

image display even in the dark.

n       Motion Detection: ON / OFF ( 8 areas) ; Auto Digital Room 4x -option

n       Privacy Zone Masking: ON / OFF ( 8 areas) – option

n       1/3 960H SONY Effio-S™ High Resolution 700TV Lines

NTSC @480,000 pixels / PAL @560,000 pixels

n       20x Optical Zoom, 16x Digital Zoom (320x Zoom Ratio)

n      Intelligent Day/Night mode through firmware suited for

any conditions

n       On Screen Display Menu

n       Digital Image Stabilizer

n       Eclipse functions for High Light Mask: Day / Night / All day

n       Manual Electronic Shutter: fixed shutter adjustable every 10 seconds

n       Line Lock sync with power frequency.

n       360° Endless

n       High Speed Pan 280°/sec, Tilt 95° /sec

n       Auto Cruise

n       Pan & Tilt Speed Proportional to Zoom Ratio

n       Built-in 3 Alarm Inputs / 1 Outputs

n       A total of 128 points can be set for monitoring.

n       Camera with standard encoding of up to 255 units

n       Remote control through infrared and RS-485 Interface

n       Approval: CE, FCC, IP66 (IEC529)

(MORES.......)

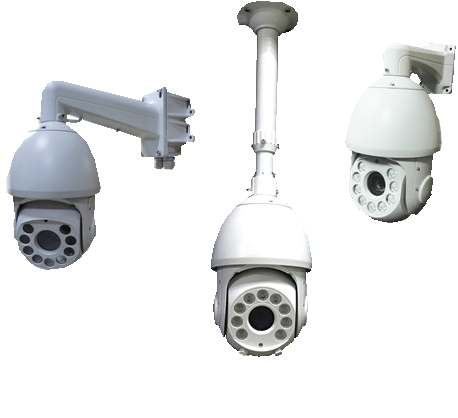

HIGH SPEED DOME

23x ZOOM



n           SHD-12 Series, Outdoor Housing, Built-in Heater & Blower

n           SAB-12 Series, Vandal-Proof Dome, IP 66 Approval

n           SDB-12 Series, Indoor Dome

n           SSDR [ Samsung Super Dynamic Range]

SSDR illuminates darker spots of an image while retaining

the same light level for brighter spots to even out the

overall brightness images with high contrast between

bright and dark spots.

DNR3 [ Digital Noise Reduction]

By using the DSP chip applied to the DNR technology, the amount of low

illuminance noise has been significantly reduced, and the signal-to-noise ratio (S/N)

as well as horizontal resolution has been improved, resulting in a clear and sharp

 image display even in the dark.

n       Motion Detection: ON / OFF ( 8 areas) - option

n       Privacy Zone Masking: ON / OFF ( 8 areas) - option

n       High Resolution: The horizontal resolution

 560TV Lines at Color mode and 680TV Lines at BW

mode can be achieved by using a high density CCD

having Double Speed 410,000 pixels SONY CCD,

which provides clean, noiseless and reliable pictures.

n       23x Optical Zoom, 16x Digital Zoom (368x Zoom Ratio)

n       Built-in MOLPF Switching mechanism for increasing
Sensitivity color and monochrome

n       On Screen Display Manual

n       360° Endless

n       High Speed Pan 400°/sec, Tilt 330° /sec

n       Automatic flip  Auto Cruise

n       Pan & Tilt Speed Proportional to Zoom Ratio

n       Built-in 3 Alarm Inputs / 1 Outputs

n       A total of 128 points can be set for monitoring. with smart auto tracking function

n       Camera with standard encoding of up to 256 units

n       Remote control through infrared and RS-485 Interface

n       Approval: CE, FCC, IP66 (IEC529)











(MORES.......)





HIGH SPEED DOME

27 x ZOOM



n           SHD-12 Series, Outdoor Housing, Built-in Heater & Blower

n           SAB-12 Series, Vandal-Proof Dome, IP 66 Approval

n           SDB-12 Series, Indoor Dome

n           SSDR [ Samsung Super Dynamic Range]

SSDR illuminates darker spots of an image while retaining

the same light level for brighter spots to even out the

overall brightness images with high contrast between

bright and dark spots.

n       DNR3 [ Digital Noise Reduction]

By using the DSP chip applied to the DNR technology, the amount of low

illuminance noise has been significantly reduced, and the signal-to-noise ratio (S/N)

as well as horizontal resolution has been improved, resulting in a clear and sharp

 image display even in the dark.

n       Motion Detection: ON / OFF ( 8 areas) - option

n       Privacy Zone Masking: ON / OFF ( 8 areas) - option

n        High Resolution: The horizontal resolution

 560TV Lines at Color mode and 680TV Lines at BW

mode can be achieved by using a high density CCD

having Double Speed 410,000 pixels SONY CCD,

which provides clean, noiseless and reliable pictures.

n       27x Optical Zoom, 16x Digital Zoom (432x Zoom Ratio)

n       Built-in MOLPF Switching mechanism for increasing
Sensitivity color and monochrome

n       On Screen Display Manual

n       360° Endless

n       High Speed Pan 400°/sec, Tilt 330° /sec

n       Automatic flip  Auto Cruise

n       Pan & Tilt Speed Proportional to Zoom Ratio

n       Built-in 3 Alarm Inputs / 1 Outputs

n       A total of 128 points can be set for monitoring. with smart auto tracking function

n       Camera with standard encoding of up to 256 units

n       Remote control through infrared and RS-485 Interface

n       Approval: CE, FCC, IP66 (IEC529)







(MORES.......)





HIGH SPEED DOME

30 x ZOOM

n           SHD-12 Series, Outdoor Housing, Built-in Heater & Blower

n           SAB-12 Series, Vandal-Proof Dome, IP 66 Approval

n           SDB-12 Series, Indoor Dome

n           SSDR [ Samsung Super Dynamic Range]

SSDR illuminates darker spots of an image while retaining

the same light level for brighter spots to even out the

overall brightness images with high contrast between

bright and dark spots.

n       DNR3 [ Digital Noise Reduction]

By using the DSP chip applied to the DNR technology, the amount of low

lluminance noise has been significantly reduced, and the signal-to-noise ratio (S/N)

as well as horizontal resolution has been improved, resulting in a clear and sharp

 image display even in the dark.

n       Motion Detection: ON / OFF ( 8 areas) - option

n       Privacy Zone Masking: ON / OFF ( 8 areas) - option

High Resolution: The horizontal resolution

 560TV Lines at Color mode and 680TV Lines at BW

mode can be achieved by using a high density CCD

having Double Speed 410,000 pixels SONY CCD,

which provides clean, noiseless and reliable pictures.

n       30x Optical Zoom, 16x Digital Zoom (480x Zoom Ratio)

n       Built-in MOLPF Switching mechanism for increasing
Sensitivity color and monochrome

n       On Screen Display Manual

n       360° Endless

n       High Speed Pan 400°/sec, Tilt 330° /sec

n       Automatic flip  Auto Cruise

n       Pan & Tilt Speed Proportional to Zoom Ratio

n       Built-in 3 Alarm Inputs / 1 Outputs

n       A total of 128 points can be set for monitoring. with smart auto tracking function

n       Camera with standard encoding of up to 256 units

n       Remote control through infrared and RS-485 Interface

n       Approval: CE, FCC, IP66 (IEC529)







(MORES.......)
